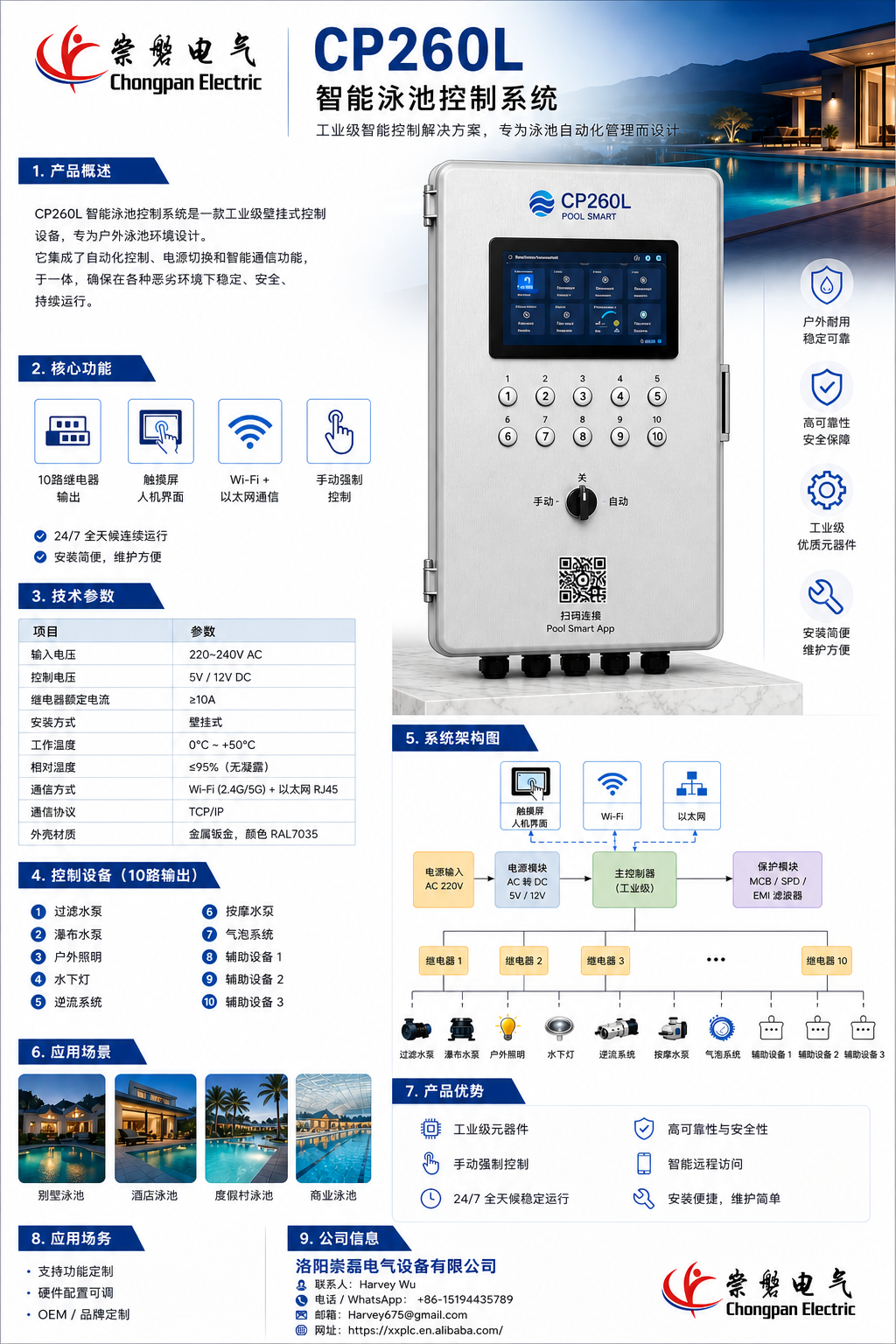

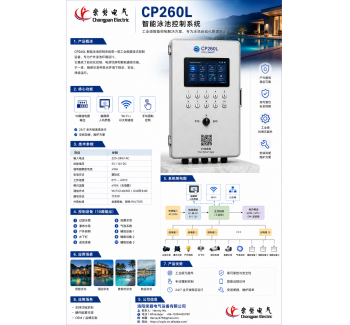

智能泳池控制系统
1. System Configuration10-channel relay outputHMI touchscreen interfaceWi-Fi + Ethernet communicationManual override control (hardware priority)
1. System Configuration
10-channel relay output
HMI touchscreen interface
Wi-Fi + Ethernet communication
Manual override control (hardware priority)
1. Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 220–240V AC |
| Control Voltage | 5V / 12V DC |
| Relay Rating | ≥10A |
| Protection Level | IP65 |
| Installation | Wall-mounted |
2. Controlled Equipment (10 Outputs)
Pool filtration pump
Waterfall pump
Outdoor lighting
Underwater lights
Counter-current system
Hydro massage pump
Air bubble system
Auxiliary equipment 1
Auxiliary equipment 2
Auxiliary equipment 3
